2216 LED Strips

  • Read More

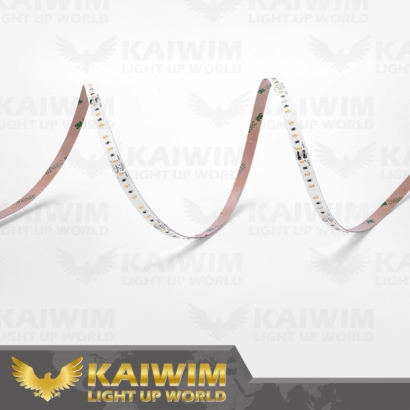

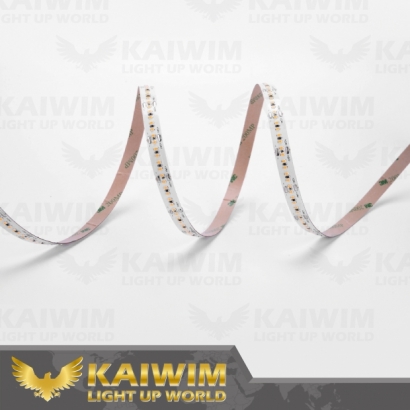

    2216-CTA240-10mm-3m

    Feature / Warranty



    ◆ SMD2216 CTA Series
    ◆ We have followed the example of single CTA Led chips in designing CTA SMD2216 Strips.
    ◆ Compared with the traditional CTA Led strips, the mixture of lighting effect of new design is better.
    ◆ What is more, it is much lower cost than single chip technology. Designed for 240 leds/m, 22 W/m, 1410 lm/m, it can meet customers’ demands of high brightness.

    IP Rate





    Aluminum Profiles


    Electrical & Output Data





    Step length (mm/x LED)
    25mm/3LEDs
    100mm/12LEDs


    Number LED/m
    120
    120


    Voltage (v)
    12V
    24V


    Ra
    90 / 95
    90 / 95


    Beam Angle(º)
    120
    120


    Power (w/m)
    10
    10


    Lumen(lm/m)
    698
    698


    Max. length per circuit (m)
    3
    3


    IP rate
    20
    20/65/66/67/68


    Installation
    3M Tape / Mounting Clips / Aluminum Profiles





    Dimensions & available lengths



    Illuminance Distribution
  • Read More

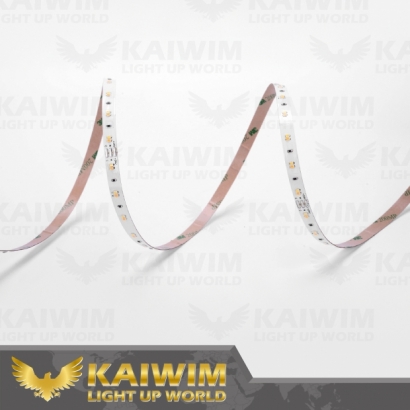

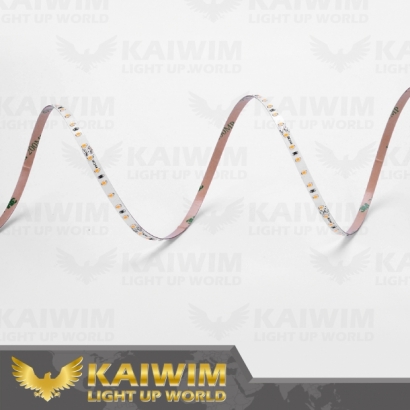

    2216-CTA192-10mm-5m

    Feature / Warranty



    ◆ SMD2216 CTA Series
    ◆ We have followed the example of single CTA Led chips in designing CTA SMD2216 Strips.
    ◆ Compared with the traditional CTA Led strips, the mixture of lighting effect of new design is better.
    ◆ What is more, it is much lower cost than single chip technology. Designed for 240 leds/m, 22 W/m, 1410 lm/m, it can meet customers’ demands of high brightness.

    IP Rate



    Aluminum Profiles


    Electrical & Output Data





    Step length (mm/x LED)
    62.5mm/12LEDs



    Number LED/m
    192



    Voltage (v)
    24V



    Ra
    90 / 95



    Beam Angle(º)
    120



    Power (w/m)
    12



    FPC width (mm)
    10



    Max. length per circuit (m)
    5



    IP rate
    20/65/66/67/68



    Installation
    3M Tape / Mounting Clips / Aluminum Profiles





    Dimensions & available lengths



    Illuminance Distribution
  • Read More

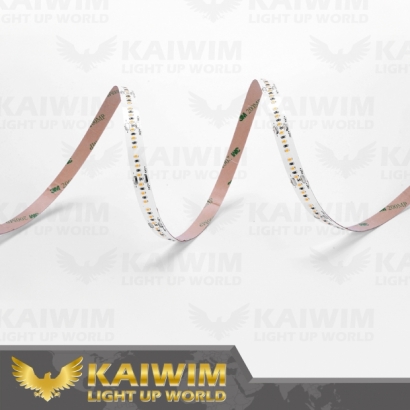

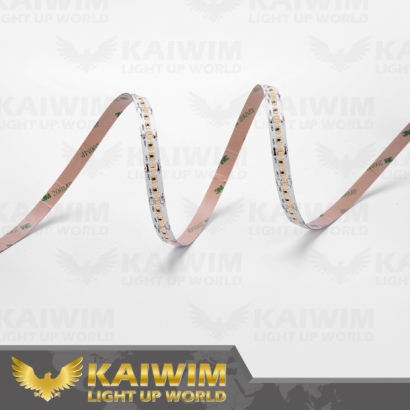

    2216-CTA180-10mm-5m

    Feature / Warranty



    ◆ SMD2216 CTA Series
    ◆ We have followed the example of single CTA Led chips in designing CTA SMD2216 Strips.
    ◆ Compared with the traditional CTA Led strips, the mixture of lighting effect of new design is better.
    ◆ What is more, it is much lower cost than single chip technology. Designed for 240 leds/m, 22 W/m, 1410 lm/m, it can meet customers’ demands of high brightness.

    IP Rate



    Aluminum Profiles


    Electrical & Output Data





    Step length (mm/x LED)
    33.3mm/6LEDs



    Number LED/m
    120



    Voltage (v)
    12V



    Ra
    90 / 95



    Beam Angle(º)
    120



    Power (w/m)
    10



    FPC width (mm)
    8



    Max. length per circuit (m)
    5



    IP rate
    20/65/66/67/68



    Installation
    3M Tape / Mounting Clips / Aluminum Profiles





    Dimensions & available lengths



    Illuminance Distribution
  • Read More

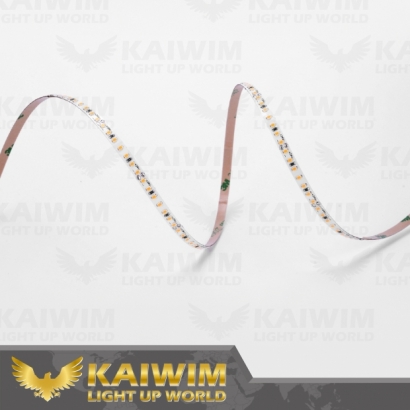

    2216-CTA120-8mm-5m

    Feature / Warranty







    ◆ SMD2216 CTA Series
    ◆ We have followed the example of single CTA Led chips in designing CTA SMD2216 Strips.
    ◆ Compared with the traditional CTA Led strips, the mixture of lighting effect of new design is better.
    ◆ What is more, it is much lower cost than single chip technology. Designed for 240 leds/m, 22 W/m, 1410 lm/m, it can meet customers’ demands of high brightness.

    IP Rate





    Aluminum Profiles







        1616







           1708







                2308






    Electrical & Output Data





    Step length (mm/x LED)
    50mm/3LEDs
    100mm/12LEDs


    Number LED/m
    120
    120


    Voltage (v)
    12V
    24V


    Ra
    90 / 95
    90 / 95


    Beam Angle(º)
    120
    120


    Power (w/m)
    10
    10


    FPC width (mm)
    8
    8


    Max. length per circuit (m)
    5
    5


    IP rate
    20/65/66/67/68
    20/65/66/67/68


    Installation
    3M Tape / Mounting Clips / Aluminum Profiles





    Dimensions & available lengths



    Illuminance Distribution
  • Read More

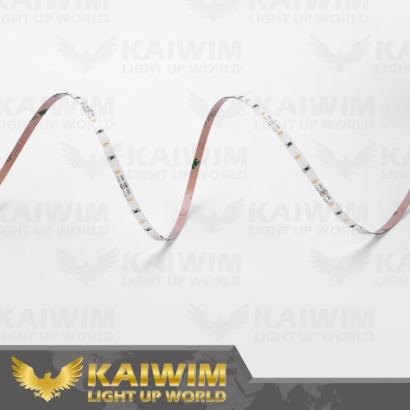

    2216-210-5mm-2.5m(Mini PCB)

    Feature / Warranty



    ◆ SMD2216 Mini PCB Series
    ◆ The size of SMD2216 Leds are small (L2.2 * W1.6 * H0.55mm), so it could make the width of whole strips narrow to 4mm.
    ◆ We develop SMD2216 Led strips, 120 leds/m, 4mm PCB, which is suitable for narrow space application.
    ◆ Compared with traditional SMD3014 / SMD3528 Mini PCB led strips, SMD2216 series are higher brightness.


    IP Rate



    Aluminum Profiles



    Electrical & Output Data



    Step length (mm/x LED):33.5mm/7LEDs
    Number LED/m:210
    Voltage (v):24V
    Ra:>90 / 95
    Beam Angle(º):120
    Power (w/m):8.64
    FPC width (mm):5
    Max. length per circuit (m):2.5
    IP rate:20
    Installation:3M Tape / Mounting Clips / Aluminum Profiles



    Light efficiency & Lumen Output





    Luminaire efficacy (3000K)
    95lm/W @Ra90



    LED color
    Ra90



     = Popular Color
     = Niche Color


    2300K
     722lm



    2500K
     739lm



    2700K
     788m



    3000K
     821lm



    3500K
     837lm



    4000K
     862lm



    5000K
     862lm



    6000K
     862lm






    Dimensions & available lengths




    Illuminance Distribution
  • Read More

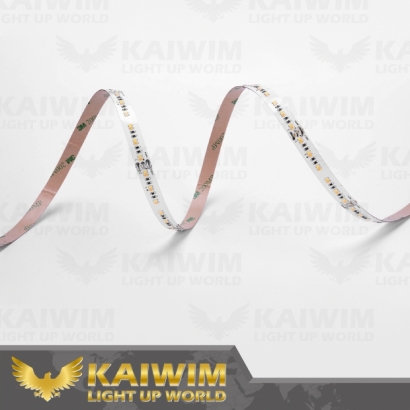

    2216-140-5mm-2.5m(Mini PCB)

    Feature / Warranty



    ◆ SMD2216 Mini PCB Series
    ◆ The size of SMD2216 Leds are small (L2.2 * W1.6 * H0.55mm), so it could make the width of whole strips narrow to 4mm.
    ◆ We develop SMD2216 Led strips, 120 leds/m, 4mm PCB, which is suitable for narrow space application.
    ◆ Compared with traditional SMD3014 / SMD3528 Mini PCB led strips, SMD2216 series are higher brightness.

    IP Rate




    Aluminum Profiles


    Electrical & Output Data



    Step length (mm/x LED):50mm/7LEDs
    Number LED/m:140
    Voltage (v):24V
    Ra:>90 / 95
    Beam Angle(º):120
    Power (w/m):8.64
    FPC width (mm):5
    Max. length per circuit (m):2.5
    IP rate:20
    Installation:3M Tape / Mounting Clips / Aluminum Profiles



    Light efficiency & Lumen Output





    Luminaire efficacy (3000K)
    92lm/W @Ra90



    LED color
    Ra90



     = Popular Color
     = Niche Color


    2300K
     699lm



    2500K
     715lm



    2700K
     763lm



    3000K
     795lm



    3500K
     811lm



    4000K
     835lm



    5000K
     835lm



    6000K
     835lm






    Dimensions & available lengths



    Illuminance Distribution
  • Read More

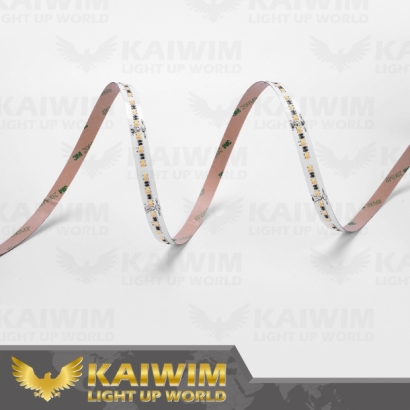

    2216-120-4mm-3m(Mini PCB)

    Feature / Warranty



    ◆ SMD2216 Mini PCB Series
    ◆ The size of SMD2216 Leds are small (L2.2 * W1.6 * H0.55mm), so it could make the width of whole strips narrow to 4mm.
    ◆ We develop SMD2216 Led strips, 120 leds/m, 4mm PCB, which is suitable for narrow space application.
    ◆ Compared with traditional SMD3014 / SMD3528 Mini PCB led strips, SMD2216 series are higher brightness.


    IP Rate




    Aluminum Profiles


    Electrical & Output Data





    Step length (mm/x LED)
    25mm/3LEDs
    50mm/6LEDs


    Number LED/m
    120
    120


    Voltage (v)
    12V
    24V


    Ra
    90 / 95
    90 / 95


    Beam Angle(º)
    120
    120


    Power (w/m)
    8
    8


    FPC width (mm)
    4
    4


    Max. length per circuit (m)
    3
    3


    IP rate
    20
    20


    Installation
    3M Tape / Mounting Clips / Aluminum Profiles





    Light efficiency & Lumen Output





    Luminaire efficacy (3000K)
    77lm/W @Ra90



    LED color
    Ra90



     = Popular Color
     = Niche Color


    2300K
     556lm



    2500K
     569lm



    2700K
     607lm



    3000K
     632lm



    3500K
     645lm



    4000K
     664lm



    5000K
     664lm



    6000K
     664lm






    Dimensions & available lengths



    Illuminance Distribution
  • Read More

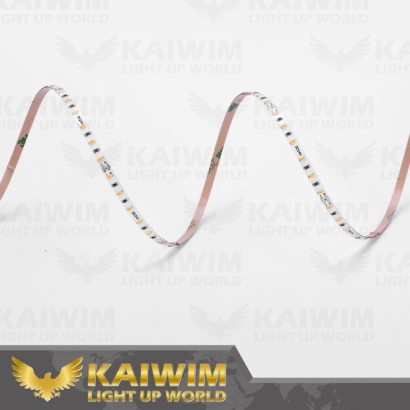

    2216-60-5mm-5m(Mini PCB)

    Feature / Warranty



    ◆ SMD2216 Mini PCB Series
    ◆ The size of SMD2216 Leds are small (L2.2 * W1.6 * H0.55mm), so it could make the width of whole strips narrow to 4mm.
    ◆ We develop SMD2216 Led strips, 120 leds/m, 4mm PCB, which is suitable for narrow space application.
    ◆ Compared with traditional SMD3014 / SMD3528 Mini PCB led strips, SMD2216 series are higher brightness.

    IP Rate



    Aluminum Profiles


    Electrical & Output Data



    Step length (mm/x LED):50mm/15LEDs
    Number LED/m:60
    Voltage (v):12V
    Ra:90 / 95
    Beam Angle(º):120
    Power (w/m):4.5
    FPC width (mm):5
    Max. length per circuit (m):5
    IP rate:20
    Installation:3M Tape / Mounting Clips / Aluminum Profiles



    Light efficiency & Lumen Output





    Luminaire efficacy (3000K)
    77lm/W @Ra90



    LED color
    Ra90



     = Popular Color
     = Niche Color


    2300K
     305lm



    2500K
     312lm



    2700K
     333lm



    3000K
     347lm



    3500K
     353lm



    4000K
     364lm



    5000K
     364lm



    6000K
     364lm






    Dimensions & available lengths



    Illuminance Distribution
  • Read More

    2216-300-10mm-5m(High Density)

    Feature / Warranty



    ◆ SMD2216 High density Series
    ◆ SMD2216 led chips are mini size and low cost, it could achieve high density line array.
    ◆ The spacing of leds is small, so it has excellent performance in luminous uniformity.
    ◆ And it could achieve low height linear lighting.
    ◆ Designed for 300 leds/m , 10mm per cuttable , cutting is more flexible.
    ◆ mini PCB series and CTA series.

    IP Rate



    Aluminum Profiles


    Electrical & Output Data





    Step length (mm/x LED)
    10mm/3LEDs
    20mm/6LEDs


    Number LED/m
    300
    300


    Voltage (v)
    12V
    24V


    Ra
    90 / 95
    90 / 95


    Beam Angle(º)
    120
    120


    Power (w/m)
    20
    10


    FPC width (mm)
    10
    5


    Max. length per circuit (m)
    3
    20


    IP rate
    20
    20/65


    Installation
    3M Tape / Mounting Clips / Aluminum Profiles





    Light efficiency & Lumen Output





    Luminaire efficacy (3000K)
    80lm/W @Ra90



    LED color
    Ra90



     = Popular Color
     = Niche Color


    2300K
     1408lm



    2500K
     1440lm



    2700K
     1536lm



    3000K
     1600lm



    3500K
     1632lm



    4000K
     1680lm



    5000K
     1680lm



    6000K
     1680lm






    Dimensions & available lengths



    Illuminance Distribution
  • Read More

    2216-240-10mm-5m(High Density)

    Feature / Warranty



    ◆ SMD2216 High density Series
    ◆ SMD2216 led chips are mini size and low cost, it could achieve high density line array.
    ◆ The spacing of leds is small, so it has excellent performance in luminous uniformity.
    ◆ And it could achieve low height linear lighting.
    ◆ Designed for 300 leds/m , 10mm per cuttable , cutting is more flexible.
    ◆ mini PCB series and CTA series.

    IP Rate



    Aluminum Profiles


    Electrical & Output Data





    Step length (mm/x LED)
    12.5mm/3LEDs
    25mm/6LEDs


    Number LED/m
    240
    240


    Voltage (v)
    12V
    24V


    Ra
    90 / 95
    90 / 95


    Beam Angle(º)
    120
    120


    Power (w/m)
    16
    16


    FPC width (mm)
    10
    10


    Max. length per circuit (m)
    5
    5


    IP rate
    20/65
    20/65


    Installation
    3M Tape / Mounting Clips / Aluminum Profiles





    Light efficiency & Lumen Output





    Luminaire efficacy (3000K)
    80lm/W @Ra90



    LED color
    Ra90



     = Popular Color
     = Niche Color


    2300K
     1126lm



    2500K
     1152lm



    2700K
     1229lm



    3000K
     1280lm



    3500K
     1306lm



    4000K
     1344lm



    5000K
     1344lm



    6000K
     1344lm






    Dimensions & available lengths



    Illuminance Distribution
  • Read More

    2216-180-10mm-5m(High Density)

    Feature / Warranty



    ◆ SMD2216 High density Series
    ◆ SMD2216 led chips are mini size and low cost, it could achieve high density line array.
    ◆ The spacing of leds is small, so it has excellent performance in luminous uniformity.
    ◆ And it could achieve low height linear lighting.
    ◆ Designed for 300 leds/m , 10mm per cuttable , cutting is more flexible.
    ◆ mini PCB series and CTA series.
    IP Rate


    Aluminum Profiles



    Electrical & Output Data





    Step length (mm/x LED)
    16.6mm/3LEDs
    50mm/6LEDs


    Number LED/m
    180
    120


    Voltage (v)
    12V
    24V


    Ra
    90 / 95
    90 / 95


    Beam Angle(º)
    120
    120


    Power (w/m)
    14.5
    14.5


    FPC width (mm)
    10
    10


    Max. length per circuit (m)
    5
    5


    IP rate
    20/65
    20/65


    Installation
    3M Tape / Mounting Clips / Aluminum Profiles





    Light efficiency & Lumen Output





    Luminaire efficacy (3000K)
    78lm/W @Ra90



    LED color
    Ra90



     = Popular Color
     = Niche Color


    2300K
     1008lm



    2500K
     1031lm



    2700K
     1100lm



    3000K
     1146lm



    3500K
     1168lm



    4000K
     1203lm



    5000K
     1203lm



    6000K
     1203lm






    Dimensions & available lengths



    Illuminance Distribution
  • Read More

    2216-120-8mm-5m(Basic Series)

    Feature / Warranty







    ◆ Because of the advantages of mini size, high brightness, high CRI and low cost,SMD2216 Led Chips could provide more flexible solution for application.
    ◆ Its good function of color consistence is suitable for Led strips application.
    ◆ According to its features, we have developed 4 kinds of SMD2216 led strip series: basic series, high density series,mini PCB series and CTA series.
    IP Rate


    Aluminum Profiles






        1616







            1708







               2308





    Electrical & Output Data





    Step length (mm/x LED)
    25mm/3LEDs
    50mm/6LEDs


    Number LED/m
    120
    120


    Voltage (v)
    12V
    24V


    Ra
    90 / 95
    90 / 95


    Beam Angle(º)
    120
    120


    Power (w/m)
    10
    10


    FPC width (mm)
    8
    8


    Max. length per circuit (m)
    5
    5


    IP rate
    20/65/66/67/68
    20/65/66/67/68


    Installation
    3M Tape / Mounting Clips / Aluminum Profiles





    Light efficiency & Lumen Output





    Luminaire efficacy (3000K)
    78lm/W @Ra90



    LED color
    Ra90



     = Popular Color
     = Niche Color


    2300K
     686lm



    2500K
     702lm



    2700K
     749lm



    3000K
     873lm



    3500K
     780lm



    4000K
     819lm



    5000K
     819lm



    6000K
     819lm






    Dimensions & available lengths



    Illuminance Distribution
