75W LED Searchlights75W LED Searchlights
Product Description
KAIWIM searchlight has an excellent focused beam, with nearly parallel light rays and long range of up to 3000 meters. It is a perfect solution for applications where high visibility at a small spot is needed, such as searching operation, rescuing operation, lighting icebergs, lighting narrow channel, etc. With using only high-quality materials, it creates the best performing LED searchlight in the market.
Specification
Power
75W
Lumen Output
5,020 LM
Color Temperature
6000K
Beam Angle
3.5°
Candlepower
1,146,936 cd
Fixture Color
White( As Standard)
IP Rating
IP68
Operating Temperature
-30°C to +40°C
Voltage
AC100-277V for MD & MC Types; AC110V or 220V for EC Type
Pan/Tilt Range
Control for MC & EC Types: Pan 0°~ 350° , Tilt -30°~ +30°
Warranty
2 years for marine applications; 5 years for non-marine applications
Note: Illumination distances are difficult to predict and deteriorate rapidly when haze, smoke, fog or smog is present.
Features
• Excellent focused optics 3.5 degree for long range illumination up to 3000m.
• Low power consumption compared to halogen/HID/MH searchlights, consuming only 75W to 240W.
• Input voltage: AC100-277V for MD & MC Types; AC110V or 220V for EC Type.
• Corrosion resistant Aluminum housing with stainless steel mounting hardware’s.
• UV-resistant toughened glass lens.
• High protection level, up to IP68, suitable for harsh weather conditions.
• High impact resistance, meeting IK10.
• High vibration resistance, meeting 3G standards.
• Low profile, lightweight, anti 17-level wind power.
• Long LED Lifespan, more than 50,000 hours, low maintenance, no bulb replacement.
• Warranty: 2 years for marine applications, 5 years for non-marine applications.
Housing & Finish
• High gloss baked white matte powder painted after fabrication
• Painted white finish
• RAL & custom colors available
Performance
Wattage
Light Output
Beam Angle
Candlepower
illumination
Distance
(m)
illumination
Diameter
(m)
illumination
Area
(m²)
illuminace
(lux)
75W
5,020 LM
3.5°
1,146,936 cd
500
31
733
4.59
750
46
1648
2.04
100
61
2931
1.15
1250
76
4579
0.73
1500
92
6954
0.51
Note: Illumination distances are difficult to predict and deteriorate rapidly when haze, smoke, fog or smog is present.
Dimensions
Operation Methods
• MD Type Manual operation - directly operated at light fixture.
• MC Type Manual operation - with adjustment column operable within the wheelhouse. (horizontally 0-350°, vertically -30 ~20°)
• EC Type Electrical operation -operated by control panel & remote controller. (horizontally 0-350°, vertically -30 ~20°)
Applications
• Searching Operation
• Rescuing Operation
• Lighting Icebergs
• Lighting Narrow Channel -
Read More
100W LED Spotlights100W LED Spotlights
Product Description
KAIWIM searchlight has an excellent focused beam, with nearly parallel light rays and long range of up to 3000 meters. It is a perfect solution for applications where high visibility at a small spot is needed, such as searching operation, rescuing operation, lighting icebergs, lighting narrow channel, etc. With using only high-quality materials, it creates the best performing LED searchlight in the market.
Specification
Power
100W
Lumen Output
6,700 LM
Color Temperature
6000K
Beam Angle
3.5°
Candlepower
1,530,771 cd
Fixture Color
White( As Standard)
IP Rating
IP68
Operating Temperature
-30°C to +40°C
Voltage
AC100-277V for MD & MC Types; AC110V or 220V for EC Type
Pan/Tilt Range
Control for MC & EC Types: Pan 0°~ 350° , Tilt -30°~ +30°
Warranty
2 years for marine applications; 5 years for non-marine applications
Note: Illumination distances are difficult to predict and deteriorate rapidly when haze, smoke, fog or smog is present.
Features
• Excellent focused optics 3.5 degree for long range illumination up to 3000m.
• Low power consumption compared to halogen/HID/MH searchlights, consuming only 75W to 240W.
• Input voltage: AC100-277V for MD & MC Types; AC110V or 220V for EC Type.
• Corrosion resistant Aluminum housing with stainless steel mounting hardware’s.
• UV-resistant toughened glass lens.
• High protection level, up to IP68, suitable for harsh weather conditions.
• High impact resistance, meeting IK10.
• High vibration resistance, meeting 3G standards.
• Low profile, lightweight, anti 17-level wind power.
• Long LED Lifespan, more than 50,000 hours, low maintenance, no bulb replacement.
• Warranty: 2 years for marine applications, 5 years for non-marine applications.
Housing & Finish
• High gloss baked white matte powder painted after fabrication
• Painted white finish
• RAL & custom colors available
Performance
Wattage
Light Output
Beam Angle
Candlepower
illumination
Distance
(m)
illumination
Diameter
(m)
illumination
Area
(m²)
illuminace
(lux)
100W
6,700 LM
3.5°
1,530,771 cd
750
46
1648
2.72
1000
61
2931
1.53
1250
76
4579
0.98
1500
92
6954
0.68
1750
107
8975
0.50
Note: Illumination distances are difficult to predict and deteriorate rapidly when haze, smoke, fog or smog is present.
Dimensions
Operation Methods
• MD Type Manual operation - directly operated at light fixture.
• MC Type Manual operation - with adjustment column operable within the wheelhouse. (horizontally 0-350°, vertically -30 ~20°)
• EC Type Electrical operation -operated by control panel & remote controller. (horizontally 0-350°, vertically -30 ~20°)
Applications
• Searching Operation
• Rescuing Operation
• Lighting Icebergs
• Lighting Narrow Channel -
Read More
150W LED Searchlight150W LED Searchlight
Product Description
KAIWIM searchlight has an excellent focused beam, with nearly parallel light rays and long range of up to 3000 meters. It is a perfect solution for applications where high visibility at a small spot is needed, such as searching operation, rescuing operation, lighting icebergs, lighting narrow channel, etc. With using only high-quality materials, it creates the best performing LED searchlight in the market.
Specification
Power
150W
Lumen Output
10,040 LM
Color Temperature
6000K
Beam Angle
3.5°
Candlepower
2,293,872 cd
Fixture Color
White( As Standard)
IP Rating
IP68
Operating Temperature
-30°C to +40°C
Voltage
AC100-277V for MD & MC Types; AC110V or 220V for EC Type
Pan/Tilt Range
Control for MC & EC Types: Pan 0°~ 350° , Tilt -30°~ +30°
Warranty
2 years for marine applications; 5 years for non-marine applications
Note: Illumination distances are difficult to predict and deteriorate rapidly when haze, smoke, fog or smog is present.
Features
• Excellent focused optics 3.5 degree for long range illumination up to 3000m.
• Low power consumption compared to halogen/HID/MH searchlights, consuming only 75W to 240W.
• Input voltage: AC100-277V for MD & MC Types; AC110V or 220V for EC Type.
• Corrosion resistant Aluminum housing with stainless steel mounting hardware’s.
• UV-resistant toughened glass lens.
• High protection level, up to IP68, suitable for harsh weather conditions.
• High impact resistance, meeting IK10.
• High vibration resistance, meeting 3G standards.
• Low profile, lightweight, anti 17-level wind power.
• Long LED Lifespan, more than 50,000 hours, low maintenance, no bulb replacement.
• Warranty: 2 years for marine applications, 5 years for non-marine applications.
Housing & Finish
• High gloss baked white matte powder painted after fabrication
• Painted white finish
• RAL & custom colors available
Performance
Wattage
Light Output
Beam Angle
Candlepower
illumination
Distance
(m)
illumination
Diameter
(m)
illumination
Area
(m²)
illuminace
(lux)
150W
10,040 LM
3.5°
2,293,872 cd
1250
73
4579
1.47
1500
92
6954
1.02
1750
107
8975
0.75
2000
122
11722
0.57
2250
137
14836
0.45
Note: Illumination distances are difficult to predict and deteriorate rapidly when haze, smoke, fog or smog is present.
Dimensions
Operation Methods
• MD Type Manual operation - directly operated at light fixture.
• MC Type Manual operation - with adjustment column operable within the wheelhouse. (horizontally 0-350°, vertically -30 ~20°)
• EC Type Electrical operation -operated by control panel & remote controller. (horizontally 0-350°, vertically -30 ~20°)
Applications
• Searching Operation
• Rescuing Operation
• Lighting Icebergs
• Lighting Narrow Channel -
Read More
180W LED Searchlights180W LED Searchlights
Product Description
KAIWIM searchlight has an excellent focused beam, with nearly parallel light rays and long range of up to 3000 meters. It is a perfect solution for applications where high visibility at a small spot is needed, such as searching operation, rescuing operation, lighting icebergs, lighting narrow channel, etc. With using only high-quality materials, it creates the best performing LED searchlight in the market.
Specification
Power
180W
Lumen Output
12,080 LM
Color Temperature
6000K
Beam Angle
3.5°
Candlepower
2,759,957 cd
Fixture Color
White( As Standard)
IP Rating
IP68
Operating Temperature
-30°C to +40°C
Voltage
AC100-277V for MD & MC Types; AC110V or 220V for EC Type
Pan/Tilt Range
Control for MC & EC Types: Pan 0°~ 350° , Tilt -30°~ +30°
Warranty
2 years for marine applications; 5 years for non-marine applications
Note: Illumination distances are difficult to predict and deteriorate rapidly when haze, smoke, fog or smog is present.
Features
• Excellent focused optics 3.5 degree for long range illumination up to 3000m.
• Low power consumption compared to halogen/HID/MH searchlights, consuming only 75W to 240W.
• Input voltage: AC100-277V for MD & MC Types; AC110V or 220V for EC Type.
• Corrosion resistant Aluminum housing with stainless steel mounting hardware’s.
• UV-resistant toughened glass lens.
• High protection level, up to IP68, suitable for harsh weather conditions.
• High impact resistance, meeting IK10.
• High vibration resistance, meeting 3G standards.
• Low profile, lightweight, anti 17-level wind power.
• Long LED Lifespan, more than 50,000 hours, low maintenance, no bulb replacement.
• Warranty: 2 years for marine applications, 5 years for non-marine applications.
Housing & Finish
• High gloss baked white matte powder painted after fabrication
• Painted white finish
• RAL & custom colors available
Performance
Wattage
Light Output
Beam Angle
Candlepower
illumination
Distance
(m)
illumination
Diameter
(m)
illumination
Area
(m²)
illuminace
(lux)
180W
12,080 LM
3.5°
2,759,957 cd
1500
92
6954
1.23
1750
107
8975
0.90
2000
122
11722
0.69
2250
137
14836
0.55
2500
153
18316
0.44
Note: Illumination distances are difficult to predict and deteriorate rapidly when haze, smoke, fog or smog is present.
Dimensions
Operation Methods
• MD Type Manual operation - directly operated at light fixture.
• MC Type Manual operation - with adjustment column operable within the wheelhouse. (horizontally 0-350°, vertically -30 ~20°)
• EC Type Electrical operation -operated by control panel & remote controller. (horizontally 0-350°, vertically -30 ~20°)
Applications
• Searching Operation
• Rescuing Operation
• Lighting Icebergs
• Lighting Narrow Channel -
Read More
240W LED Searchlights240W LED Searchlights
Product Description
KAIWIM searchlight has an excellent focused beam, with nearly parallel light rays and long range of up to 3000 meters. It is a perfect solution for applications where high visibility at a small spot is needed, such as searching operation, rescuing operation, lighting icebergs, lighting narrow channel, etc. With using only high-quality materials, it creates the best performing LED searchlight in the market.
Specification
Power
240W
Lumen Output
16,080 LM
Color Temperature
6000K
Beam Angle
3.5°
Candlepower
3,673,851 cd
Fixture Color
White( As Standard)
IP Rating
IP68
Operating Temperature
-30°C to +40°C
Voltage
AC100-277V for MD & MC Types; AC110V or 220V for EC Type
Pan/Tilt Range
Control for MC & EC Types: Pan 0°~ 350° , Tilt -30°~ +30°
Warranty
2 years for marine applications; 5 years for non-marine applications
Note: Illumination distances are difficult to predict and deteriorate rapidly when haze, smoke, fog or smog is present.
Features
• Excellent focused optics 3.5 degree for long range illumination up to 3000m.
• Low power consumption compared to halogen/HID/MH searchlights, consuming only 75W to 240W.
• Input voltage: AC100-277V for MD & MC Types; AC110V or 220V for EC Type.
• Corrosion resistant Aluminum housing with stainless steel mounting hardware’s.
• UV-resistant toughened glass lens.
• High protection level, up to IP68, suitable for harsh weather conditions.
• High impact resistance, meeting IK10.
• High vibration resistance, meeting 3G standards.
• Low profile, lightweight, anti 17-level wind power.
• Long LED Lifespan, more than 50,000 hours, low maintenance, no bulb replacement.
• Warranty: 2 years for marine applications, 5 years for non-marine applications.
Housing & Finish
• High gloss baked white matte powder painted after fabrication
• Painted white finish
• RAL & custom colors available
Performance
Wattage
Light Output
Beam Angle
Candlepower
illumination
Distance
(m)
illumination
Diameter
(m)
illumination
Area
(m²)
illuminace
(lux)
240W
16,080 LM
3.5°
3,673,851 cd
2000
122
11722
0.92
2250
137
14836
0.73
2500
153
18316
0.59
2750
168
22162
0.49
3000
183
26375
0.41
Note: Illumination distances are difficult to predict and deteriorate rapidly when haze, smoke, fog or smog is present.
Dimensions
Operation Methods
• MD Type Manual operation - directly operated at light fixture.
• MC Type Manual operation - with adjustment column operable within the wheelhouse. (horizontally 0-350°, vertically -30 ~20°)
• EC Type Electrical operation -operated by control panel & remote controller. (horizontally 0-350°, vertically -30 ~20°)
Applications
• Searching Operation
• Rescuing Operation
• Lighting Icebergs
• Lighting Narrow Channel -
Read More

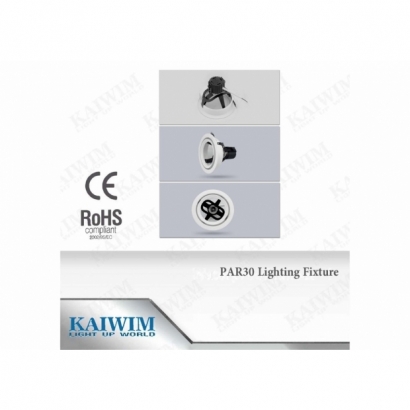

LED PAR30 Fixture / LED Spotlight FixtureLED PAR30 Fixture / LED Spotlight Fixture
Model No：KWES-PA-09 -
Read More

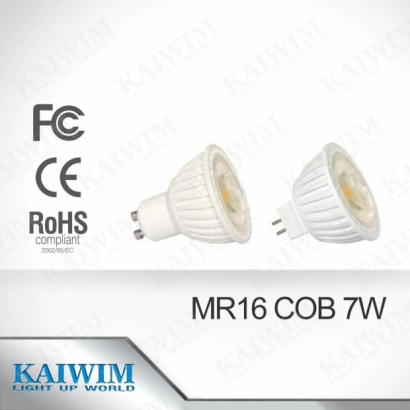

LED MR16 / LED GU10 / LED SpotlightLED MR16 / LED GU10 / LED Spotlight
Model No：KWZW-SP-01
